Custom Flowlyze Adapter

This package is used to make available a new template on Visual Studio (or dotnet CLI) to use as a starting base for creating a custom adapter.

The package ID is Ipaas.Adapter.Template.

To download the package click here

Installation​

To install the template, navigate to the same folder as the .nupkg file and run the command:

dotnet new install <PACKAGE_TEMPLATE_NAME>.nupkg

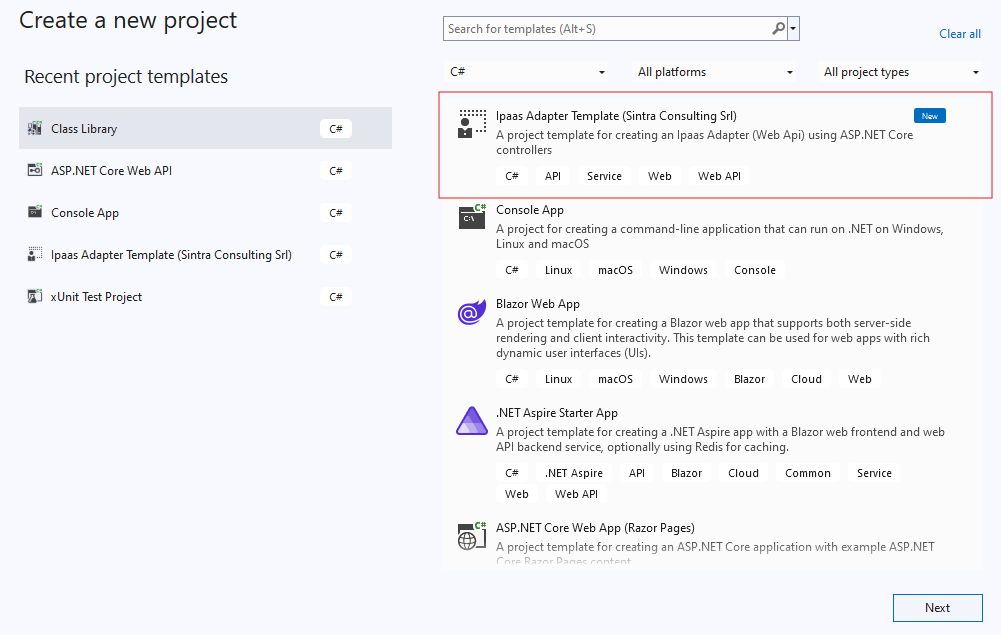

At the end of the command, you will already be able to create projects with this template: open Visual Studio and search for the newly installed template with the name Ipaas Adapter:

Visual Studio New Project Template.

To uninstall the template:

dotnet new uninstall Ipaas.Adapter.Template

Dependencies​

This template is based on .NET8 and uses the following NuGet packages:

  • Newtonsoft.Json: used for serialization and deserialization of JSON objects
  • Swashbuckle.AspNetCore: used to have a graphical interface for testing APIs
  • AspNetCore.Authentication.ApiKey: used for authentication via API Key

Structure​

Let's briefly describe the template structure

Authentication​

The implemented authentication is based on API Key: by default, the key value is read from a configuration file with key ApiKey and as header it checks for the presence of the x-api-key key, but it is possible to implement the logic you prefer.

To change this logic, simply modify the ApiKeyProvider.cs file present in the Auth folder.

Controller​

There is an example Egress-type controller, which implements receiving a message and returns the response as Flowlyze expects. Basically, the structure of an Egress endpoint will always be the same:

  • Check message consistency
  • Skip messages not to be processed
  • Message processing
  • Return response

The Ingress-type controller is empty as it can be implemented according to needs and can return any data.

Services​

Inside there is an example service that implements the business logic to process the received message.

There is also validation logic to show how errors for each individual message must be handled: this logic must be used for every type of problem, not just validation.

We also find the use of a class that represents the headers that may be present in the call from Flowlyze to the adapter.

Example request​

Inside the solution there is an ExampleRequest.http file with which you can directly execute example calls to the adapter with everything preconfigured (url, apikey, message) The call result will show a response that contains two messages: one with success and one with error.
